Hand-Held Laser
Welding Safety

What you need to know about using your hand-held laser safely.
Protect yourself and those around you.

Shop now

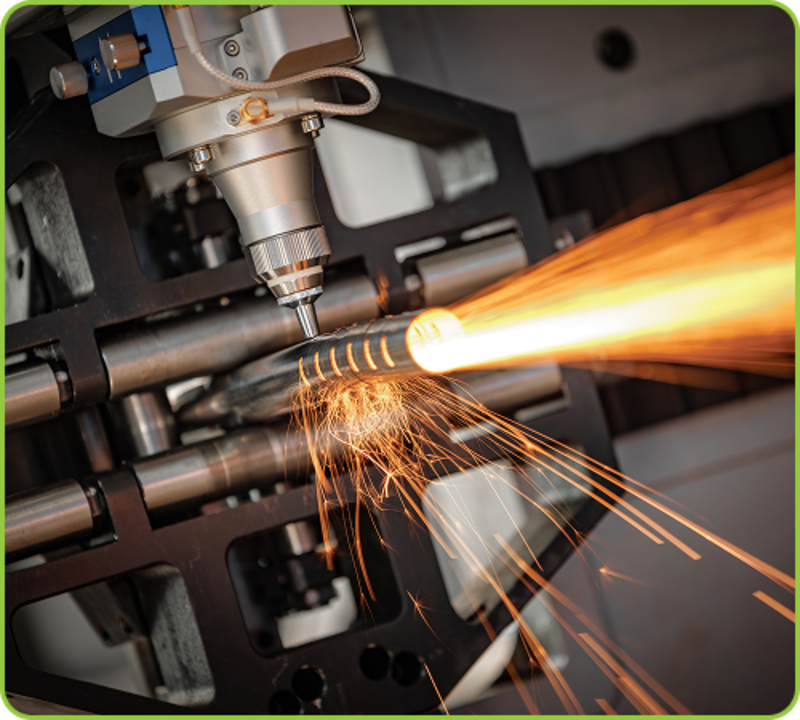

Hand-held laser welding systems are Class 4 industrial lasers

While they are highly productive pieces of equipment, hand-held lasers also pose a serious risk to operators and bystanders. These lasers emit invisible, high-power, high-radiation beams capable of causing instant and permanent eye injury or blindness.

Such injuries can come from:

  • Direct exposure to lasers
  • Specular (mirror-like) or diffused laser reflections


Laser radiation can travel significant distances, well beyond the workpiece. As such, it's important to understand and apply several key safety measures before you begin working with your laser.

1. Establishing a Laser Controlled Area (LCA)

Hand-held laser welding operations must only be performed in a designated Laser Controlled Area (LCA). The LCA must have the following:


Be clearly defined and restricted


Display a Class 4 laser warning signage


Prevent any unauthorised access


Controlled reflections and beam escape

If a fixed enclosure is not possible to operate the laser, laser-safety screens or laser barriers must be used to fully contain the hazard zone.

2. Wearing Personal Protective Equipment (PPE)

Standard welding PPE is NOT sufficient for laser welding. Instead, operators are required to wear the following mandatory PPE:


Compliant, laser-rated eye protection


Laser-safe welding helmet or face shield


Flame-resistant clothing


Heat-resistant gloves


Skin coverage to prevent burns from reflected radiation

Laser safety eyewear should always match the laser’s wavelength, have the correct optical density, and be inspected regularly for any damage or expiry.

3. Reflection and Back-Reflection Control

Highly reflective materials, such as aluminium, copper, and stainless steel, can produce dangerous reflected beams during laser welding. These reflections can result in unwanted radiation exposure to the operator, putting them at risk.
Reflections can occur from:


Flat surfaces


Angled joints


Backing plates


Passing through parts behind the weld

Operators should always assess their reflection paths before welding, avoid welding reflective backing materials where possible, and position themselves out of reflection zones.

4. Hand-Held Laser Safety Features

Working with the right hand-held laser is key. Your laser systems must come with the following safety features:


Key-switch control to prevent unauthorised use


Emergency stop buttons within reach of the operator


Interlock systems for area access


Workpiece contact detection or equivalent safety interlocks


Automatic laser shut-off if conditions are unsafe

5. Fumes, Gases, and Fire Risk

Laser welding generates very fine fumes that can be toxic when inhaled, particularly when welding materials such as stainless steel, galvanised metal, and aluminium. Additionally, these laser beams can ignite flammable materials, even from reflections.
Here are some precautionary steps:


Use a fume extractor and always conduct extraction at the source


Ensure workstations are properly ventilated


Wear respiratory protection where required


Remove combustible materials from the laser area and have fire controls in place

6. Training & Laser Safety Officer (LSO)

Organisations using laser systems should appoint a staff member to serve as a “Laser Safety Officer” (LSO). This staff member is defined as “one who is knowledgeable in the evaluation and control of laser hazards and has responsibility for oversight of the control of laser hazards”.

In addition to welding qualifications, the LSO must also receive laser-specific training. He or she is responsible for:


Risk assessments


Defining controlled areas


PPE selection


Operator training


Ongoing safety compliance

7. Lastly, always follow these safe operating behaviours


Never bypass safety interlocks


Never point the laser head at people


Never operate outside a controlled area


Never assume reflected light is safe


Always verify PPE, interlocks, and area controls before activation
