IPG LightWELD
Laser Welding System

Consistent, high-quality welding for beginner and experienced operators.
IPG LightWELD is a next-level IPG laser welding and
cleaning solution - now with enhanced automation.

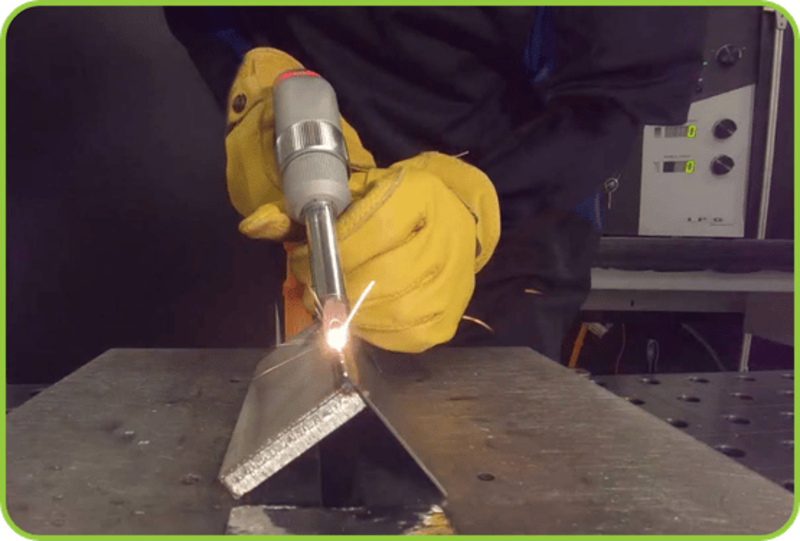

Effortless Welding With High-Quality Results

The LightWELD is a laser welding system that dramatically improves your welding process with its easy-to-use features and high-quality results. Unlike traditional welding methods, LightWELD is infinitely easier to operate, providing minimal distortion or deformation across a wide range of materials.

IPG laser welding machines boast up to four times faster welding than traditional TIG/MIG welding, with built-in safety features and pulsing for pre- or post-weld cleaning (on XC and XR models) to remove rust, oil and discolouration.

The IPG LightWELD Laser Welding Range

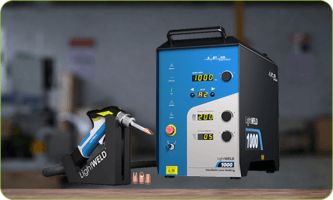

LightWELD 1000
Entry Level

LightWELD 1000

1000 W Laser

Entry-level welding-only unit with 1000 W laser. Not recommended for Al-6xxx, Ni/Ti or copper.


Max Weld (Steel) 4 mm (Steel / Aluminium)

Wobble Width 5 mm

Cleaning

Most cost-effective

Small size and 100% duty cycle

Wobble welding up to 5 mm width

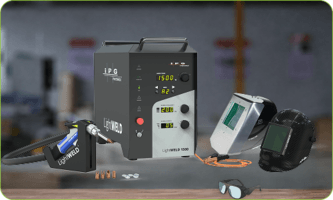

LightWELD 1500
Standard

LightWELD 1500

1500 W Laser

Standard welding-only machine using a 1500 W fibre laser with 2500 W peak pulses.


Max Weld (Steel) Up to 4 mm

Other Materials Copper up to 1 mm

Cleaning

Up to 4× faster than TIG/MIG

Air-cooled unit (approx. 53 kg)

74 preset/user-defined modes

Wobble frequency up to 300 Hz

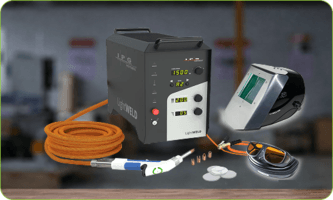

LightWELD 1500 XC
With Cleaning

LightWELD 1500 XC

1500 W Laser

Adds cleaning to the LightWELD 1500. 1500 W welding with 2500 W peak pulsed cleaning.


Max Weld (Steel) Up to 4 mm

Other Materials Copper up to 1 mm

Cleaning Up to 15 mm width

Integrates cleaning functions

Supplied with cleaning nozzles, helmet and safety glasses

Pre- and post-weld cleaning up to 15 mm width with peak power up to 2500 W

Wobble welding up to 5 mm

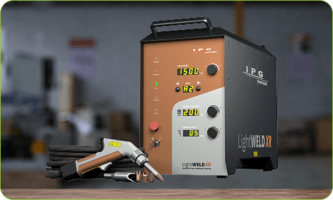

LightWELD 1500 XR
Extended Range

LightWELD 1500 XR

1500 W Laser

An extended-range model delivering a 1500 W welding beam and 2500 W pulsed cleaning.


Max Weld (Steel) Up to 6.35 mm

Other Materials Copper up to 2 mm

Cleaning Up to 15 mm width

100 stored modes for different materials/thicknesses

Wobble welding up to 5 mm

Multi-level safety interlocks and ergonomic gun

Aluminium 6xxx up to 5 mm; titanium & nickel alloys up to 5 mm

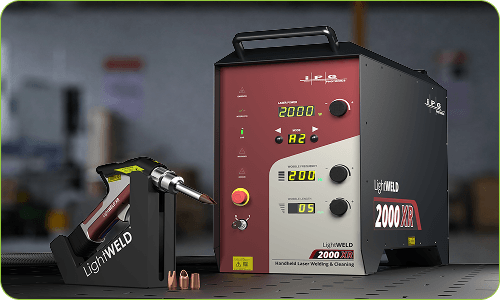

LightWELD 2000 XR
Highest Power

LightWELD 2000 XR

2000 W Laser

Highest-power model with a 2000 W continuous laser and 3000 W peak pulsed cleaning.


Max Weld (Steel) Up to 8 mm

Other Materials Copper up to 3 mm

Cleaning Up to 15 mm, 3000 W peak

Over 30% more power than the 1500 XR

Higher energy density and faster welding of thick materials

Built-in presets updated for quick set-up

Wobble welding up to 5 mm width

Titanium & nickel alloys up to 7 mm; aluminium 6xxx up to 5 mm

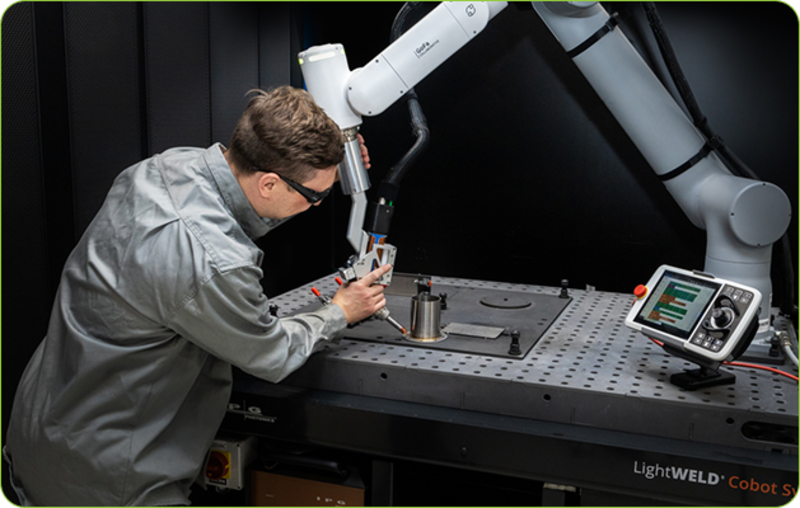

IPG LightWELD® Cobot System - Automated Laser Welding & Cleaning

The IPG LightWELD Cobot System is a robotic solution that automates laser welding and cleaning for modern fabrication workshops. The system automates repetitive welding tasks, delivering consistent, repeatable results while freeing up welders to focus on higher-value, complex work.

Powered by IPG’s proven LightWELD® laser technology, the compact system is ideal for thin materials, reflective metals, and dissimilar material thicknesses. It is easy to use for both experienced and beginner operators.

System Overview

icon

Collaborative robot (ABB GoFa 12) with 6-axis motion and high repeatability

icon

LightWELD laser source (up to 2 kW) selectable to match your application

icon

Integrated work surface (1,000 × 1,500 mm) with precision fixturing grid

icon

Mobile operator station with emergency stop, cycle start and laser enable

icon

Optional integrated safety enclosure or modular LightWELD Studio environment








Get Started On The Revolutionary
 IPG Welding Solution


Call our knowledgeable engineers at +61 (03) 9796 3055, or request a quote below.
