HSG Nozzle
Aligners

Seamless alignment of fibre-lasers with materials. HSG’s
Nozzle Visual Aligners take precision to a whole new level.

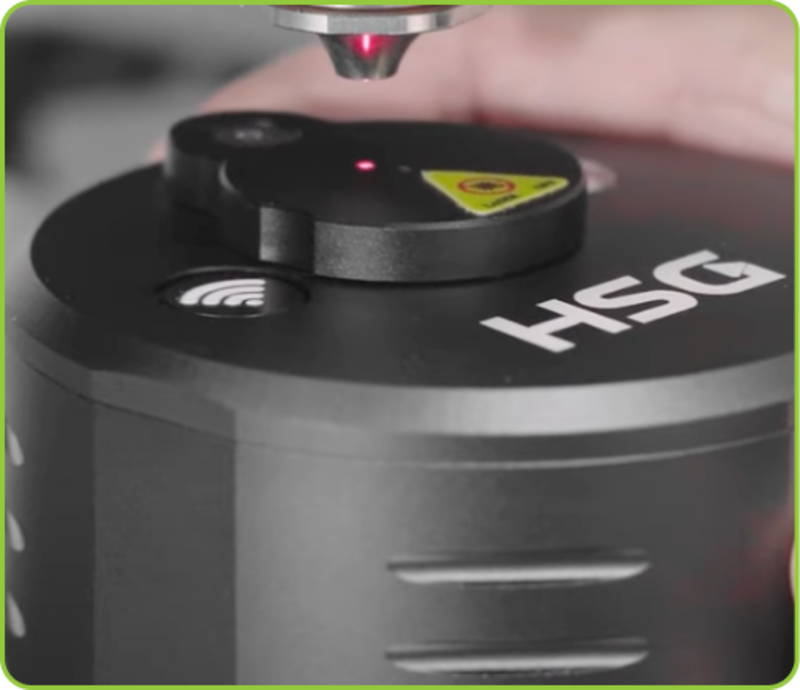

HSG NVA: AI-Powered Nozzle Visual Aligner

The HSG NVA (Nozzle Visual Aligner) is an advanced vision-based laser nozzle alignment system that speeds up and simplifies the coaxial alignment of fibre-laser cutting heads. While traditional nozzle calibration can take 3 to 5 minutes, the NVA completes the process in just 1.5 minutes, boosting efficiency by 300% compared to manual methods.

No more poor cuts and waste materials. The NVA delivers ≤0.08 mm accuracy in a compact, portable 105×77 mm design.

Download Brochure

Key Features and Benefits

Rapid Calibration

Performs automatic coaxial alignment in 1.5 minutes, increasing efficiency by up to 300 %

AI-Driven Accuracy

HSG’s Self-developed vision and fitting algorithm ensures beam alignment within ≤0.08 mm.

Simple Three-Step Process

Calibration requires only three intuitive steps to get started.

Compact & Portable

Measures 105 × 77 mm and has a weight of ~621 g.

Versatile Power Options

Powered by USB adapter, power bank, or built-in battery.

Broad Compatibility

Works with 1.0–3.0 mm nozzles on most fiber lasers.

Reliable in Industrial Environments

Operates in workshops at 0–60°C. Includes cable, inspection label, and user guide.

Safe, Red-Light Simulation

Uses a low-power red-light simulator rather than emitting the cutting laser during calibration.

See the Difference in Your Processes

Higher Cut Quality and Process Stability

By delivering consistent coaxial alignment, the HSG nozzle aligner reduces slag, burrs and edge defects.

Reduced Operator Skill Requirements

AI-guided visual interface can be operated even by beginners for accurate calibration.

Less Wear and Safer Operation

Calibrating with red light rather than firing the laser protects operators and reduces wear on expensive cutting heads.

More Productivity and Lower Costs

Faster calibration means fewer cutting hours and fewer scrap parts. Less downtime. More profitability.

Get Quality Nozzle Aligners
With Local Support

Speak to the team at Industrial Laser Solutions about your requirements and use case. We’ll pair you with the right tool and support you at every step.
