HSG Tube Laser
Cutting Machines

From compact tube laser cutters to ultra-heavy
four-chuck industrial platforms. Get the best
products from HSG at Industrial Laser Solutions.

Shop now

Precision Cutting for Tube Dimensions

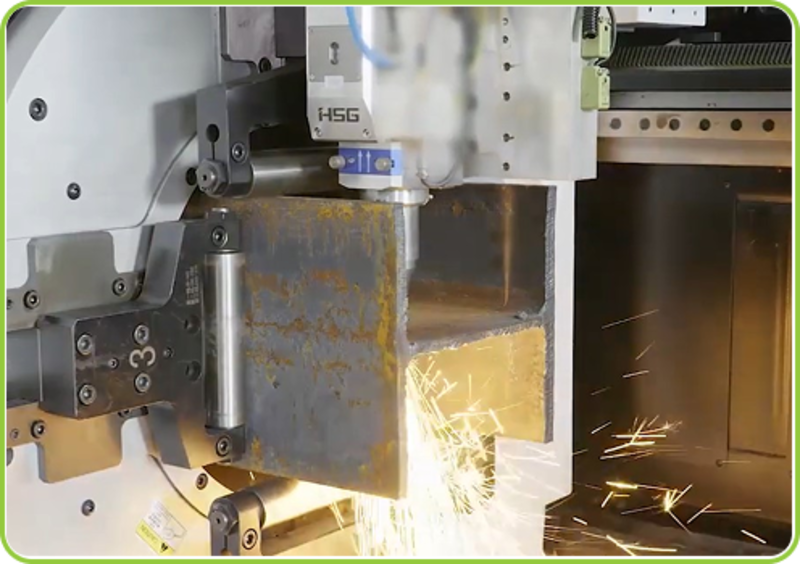

HSG tube laser cutting is a fiber laser process that can cut, profile, notch, and pierce hollow sections such as round tubes, square tubes, and rectangular tubes. It can also cut structural shapes such as angle iron, I-beam, and channel steel.

Modern fiber tube laser cutting machines are fast, highly accurate, and reliable. At Industrial Laser Solutions, we supply a range of HSG tube lasers for any fabrication needs — from small jobs to large-scale production environments.

HSG Tube Laser Products

HSG is one of the world's leading fiber laser manufacturers offering a wide range of tube laser cutting machines. Here’s why they are a popular choice among Australian and New Zealand fabricators.

Trusted Worldwide

Serves over 100 countries and regions with over 23 service outlets.

Wide Product Range

Options from entry-level fabrication to heavy industrial production.

High Tube Weight

Up to 3000 kg tube weight supported for the most demanding applications.

Australian Support

Backed by ILS' local team for installation, training, and ongoing service.

HSG Tube Laser Range

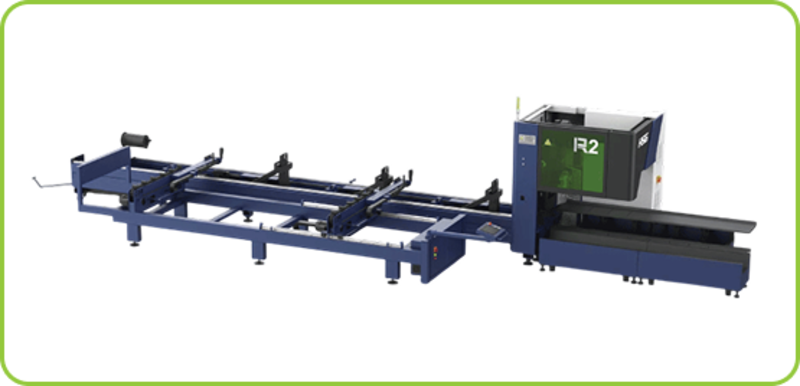

HSG R2 Tube Laser Cutting Machine

The HSG R2 Tube Laser Cutting Machine is a high-performance fiber laser system designed for tube cutting across a wide range of industrial applications. Combining advanced laser technology with intelligent automation, it can cut accurately across various round tubes, square tubes, and structural profiles.

Versatile Tube Processing

Round tube Ø12–240 mm, square tube □12–240 mm, L-profile, H-profile, and custom shapes.

High Axis Speed

Maximum axis speed of up to 120 m/min and rapid tube rotation speeds

Auto Load & Unload

Automatic loading and unloading to minimise manual handling and maximise machine uptime.

HSG-X CNC Control

Bus-based CNC system with real-time feedback, intelligent nesting, and tube centre detection.

Double-Chuck Clamping

Pneumatic concave wheel supports for stable holding, accurate positioning, and reduced vibration.

Material Savings

Corner anti-burn and short-tail cutting features to reduce scrap and lower processing costs.

Download Brochure

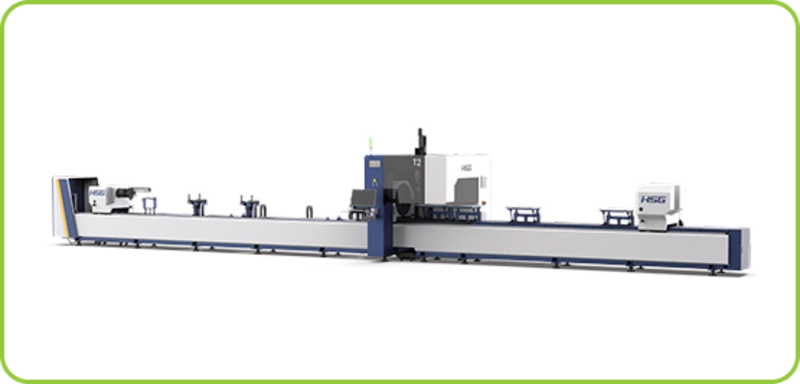

HSG T2 Tube Laser Cutting Machine

The HSG T2 Series is a heavy-duty fiber tube laser cutting machine built for demanding production environments. The T2 has a robust cutting performance, comprehensive automation options, and an advanced three-chuck rotary system — making it ideal for the automotive, aerospace, structural fabrication, and general manufacturing sectors.

Three-Chuck Rotary System

Two front and one rear chuck for maximum load and short-tail cutting

Hollow C3 Chuck Design

Full tube blanking and better stability across varied tube shapes.

Wide Profile Support

Cut round, square, rectangular, and sectional tubes in one machine.

Precision Motion & Support

Independent servo follow-up support for stable tube cutting and superior positional accuracy.

Intelligent CNC & Nesting

Bus control with professional nesting software to optimise material use.

Automation Options

Optional automatic loading system to reduce manual handling and increase speed.

Download Brochure

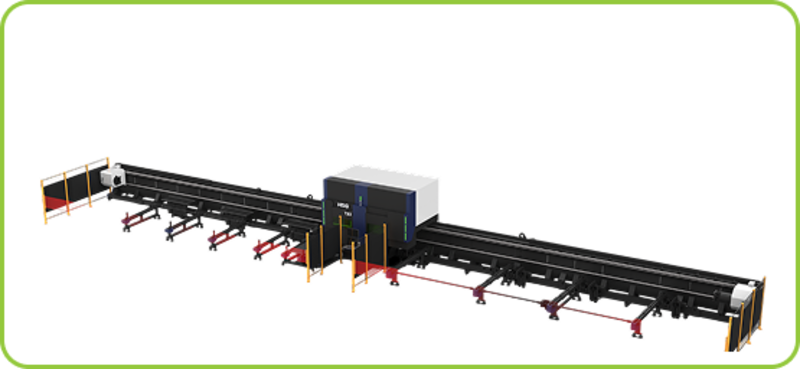

HSG TX3 Series – Heavy-Duty Tube Fiber Laser Cutting Machine

The HSG TX3 Series is a high-performance, heavy-duty fiber tube laser system engineered for large-diameter and heavy tube cutting. This laser cutter combines modern automation, HSG's patented 3-plus-1 twin-chuck configuration, and advanced CNC control.

Heavy-Duty L-Bed Frame

L-shaped lathe bed absorbs vibration for rugged, stable production use.

Patented 3+1 Twin-Chuck

C3 and C4 clamping function for zero-tailing cutting and full-length tube support.

Powerful Laser

With fiber laser powers typically ranging from around 6 kW up to 20 kW.

Optional Bevel Cutting

Add on a ±45° bevel head for advanced joint preparation.

Intelligent CNC & Nesting

With real-time monitoring and advanced tube processing functions.

Automation Options

Optional automatic loading system to reduce manual handling and increase speed.

Download Brochure

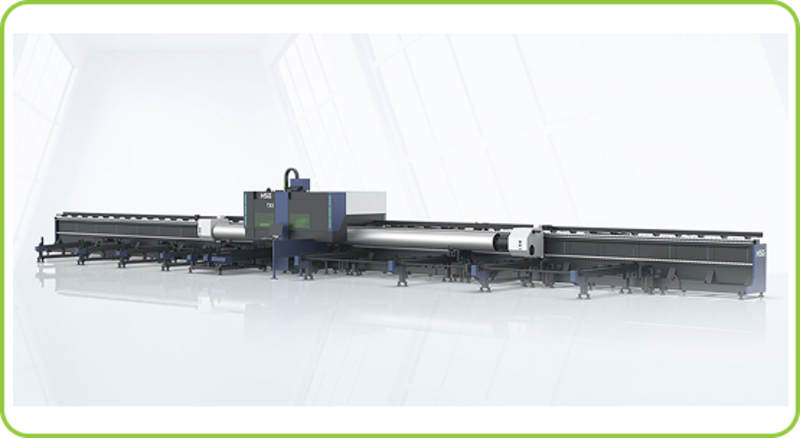

HSG TX5 Series – Larger, Heavy-Duty Tube Fiber Laser Cutting Machine

The HSG TX5 Series can process round tubes up to 510 mm in diameter and handle individual tube weights up to 2,000 kg. It has powerful laser capabilities, zero-tailing material efficiency, and optional bevel cutting for welding joint preparation.

Large Tube & Profile Cutting

Cut round tubes up to 510 mm, square 500 mm, plus channel, angle, and I-beam.

2,000 kg Load Capacity

Handles extra-large, heavy tube lengths of up to 12,500 mm in one pass.

Zero-Tailing Technology

Eliminates tail scrap to improve material yield in heavy tube cutting.

Optional Bevel Cutting

Add on a ±45° bevel head for an advanced joint preparation.

HSG-X10000 Bus Control System

With real-time monitoring and advanced tube processing functions.

Automation Options

Optional automatic loading system to reduce manual handling and increase speed.

Download Brochure

HSG TL Series – Four-Chuck Heavy-Duty Tube Fiber Laser Cutting Machine

At the pinnacle of the HSG tube laser cutting machine lineup is the HSG TL Series. This machine is a four-chuck, ultra-heavy-duty fiber laser platform engineered for the largest structural tubes, capable of processing round tubes up to 660 mm and handling single-tube weights up to 3,000 kg.

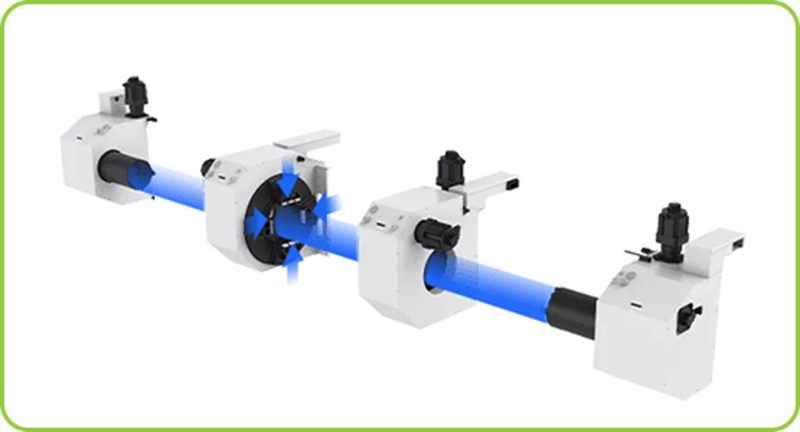

Four-Chuck Heavy-Duty Structure

Robust four-chuck system for stable, vibration-free cutting of large and heavy tubes.

Ultra-Large Diameter Range

Cuts round tube diameters up to 660 mm and square tube diameters up to 450×450 mm capacity.

3,000 kg Tube Capacity

Processes the heaviest structural sections with confidence and stability.

Automatic Loading & Short Tail Cutting

Includes automatic loading/unloading and clamping coordination that enables short-tail cutting.

HSG-X Bus Control System

HSG-X bus control with intuitive touchscreen and real-time system monitoring.

Versatile Splicing Functions

Advanced nesting/splicing functions to streamline production and minimise setup time.

Download Brochure

Find the Right Laser.
With the Right Support

Speak to the team at Industrial Laser Solutions about your materials and use case. We’ll pair you with the right machine and support you at every step.
