IPG LaserCube

The IPG LaserCube is a compact flatbed laser cutting system purpose-built for manufacturers cutting small, intricate metal parts. Get a quote at Industrial Laser Solutions.

Shop now

Precision Cutting for Small Parts

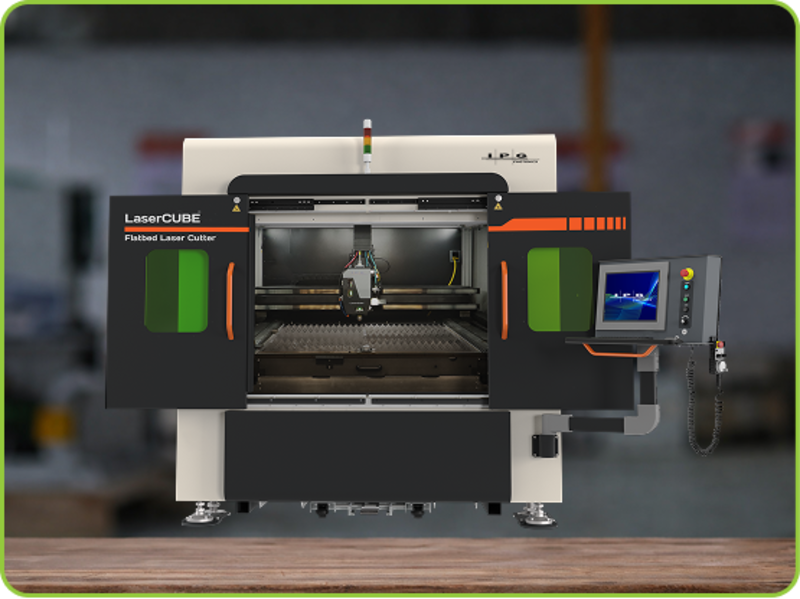

The IPG LaserCube is a compact, high-precision flatbed laser cutting system engineered for cutting small, intricate metal parts. Made by IPG Photonics, LaserCube combines industry-leading laser beam quality with a rigid motion platform and a fully enclosed Class 1 safety design.

It is the ideal solution for manufacturers of precision-fabricated components, medical devices, electronics, and high-value industrial parts. While most flatbed laser cutting systems are designed for large sheets, the LaserCube delivers high-speed cutting, exceptional edge quality, and near-maintenance-free operation for intricate parts.

Download Brochure

Benefits of the IPG Laser Cube Cutting System

19 mm

Cuts metals from thin foils up to 19 mm thickness

6 kW

Maximum laser power

45%

Energy efficiency

Easy

To learn, program, and operate

5.7 m²

Requires only 5.7 m2 of floor space

±25 µm

±25 μm positioning accuracy

Specifications

Maximum Cutting Speed
         1000 mm/s

Materials
Stainless/Mild Steel, Aluminium, Brass, Copper, Laminated Foils

XYZ Working Range
1250 x 1250 x 75 mm
Optional Rotary for Tube Cutting

Positioning Accuracy
±25 µm

Positioning Repeatability
<10 µm

Material Loading
Telescoping Drawer with Metal Cutting Bed
Optional External Pallet Support for Heavy Sheets
Optional Automated Material Loading

Part Tooling
Manual Clamping
Optional Pneumatic Clamping

Control Software
CNC G-code Compliant HMI

Display & Operation
17" Monitor with Keyboard & Mouse

Safety & Compliance
Class I Laser Safe CE Certified
IPG Laser Source
Selected to Best Match Application

Laser Integration
Internal or External

Beam Delivery Hood
IPG Cutting Hood
