Deburring machines / R, RR

Sheet Metal
Edge Rounding Machines

A laser leaves a clean cut and a razor edge. That edge cuts hands, and it is where powder coat and paint fail first, because coating pulls thin over a sharp corner. Lasvio R and RR machines put a consistent radius on every edge of the part, including contours and internal cut-outs, in one pass.

Send us your parts

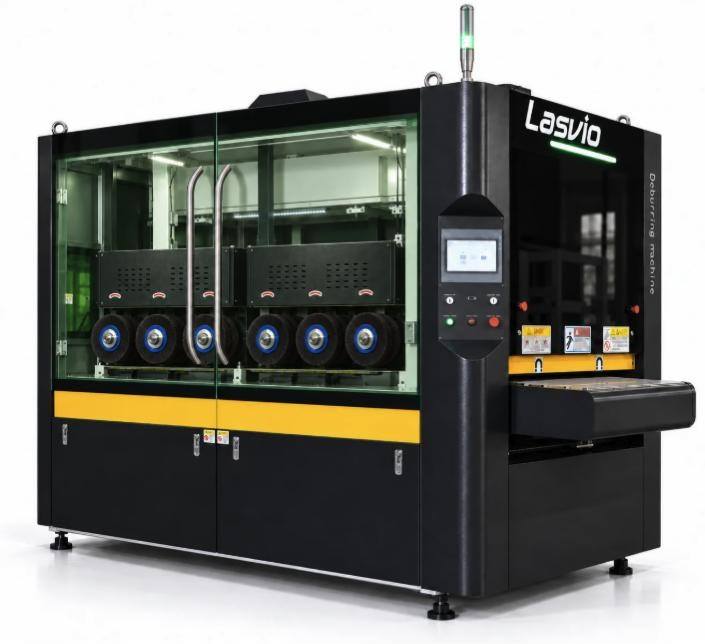

Lasvio RR sheet metal edge rounding machine with universal rotary brushes

Why sharp edges are a production problem

Coating thins at a sharp corner, so corrosion starts at the edge

Operators and customers handle parts that can cut them

Hand deburring gives a different edge on every part and every shift

Rework when a coated batch fails inspection

R or RR: which one

Both use universal rotary brushes that contact the part from several directions, so straight edges, curves and holes all get the same treatment.

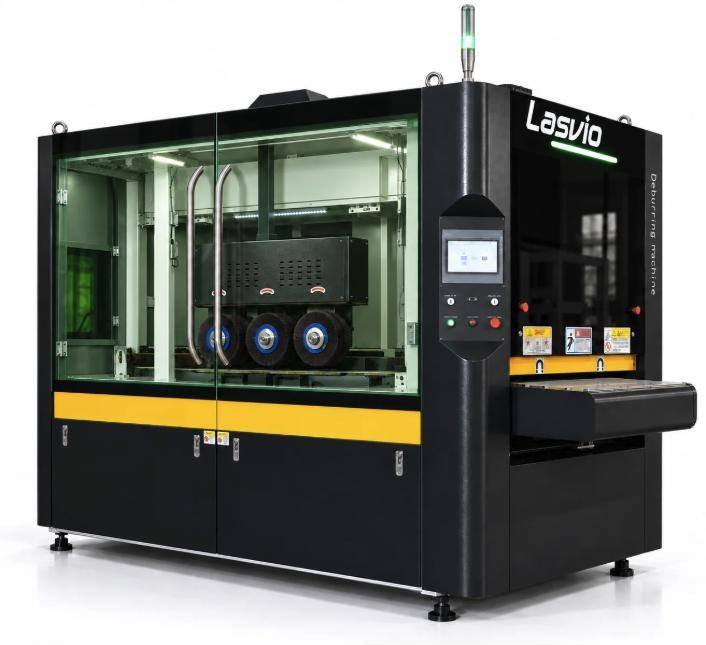

R

One rotary brush unit

Routine edge breaking and light to moderate radius targets, with fewer consumables to run.

RR

Two rotary brush units

A larger or more consistent radius, complex part shapes, or higher throughput.

These machines round edges only. If the parts also carry a cutting burr, look at the BR, BBR and BRB deburring and edge rounding machines, which put an abrasive belt ahead of the brush.

Specifications

Specification	Detail
Working widths	800, 1000, 1300 and 1600 mm
Part thickness	0.5 to 80 mm
Minimum part size	15 x 15 mm on the magnetic table; 50 x 50 mm on the vacuum table (solid sheet)
Feed speed	1 to 5 m/min, adjustable
Compressed air	0.5 to 0.8 MPa
Power supply	415 V, 3-phase, 50 Hz
Control	Siemens PLC and touch screen, closed-loop servo drive
Part holding	Magnetic table for carbon steel; vacuum table for stainless, aluminium, copper and other non-magnetic parts
Safety	Interlocked doors, emergency stops, air pressure and over-thickness alarms
Materials	Carbon steel, stainless steel, galvanised steel, copper, aluminium (with wet dust collection)
Warranty	Two years, with installation, training and service from our Melbourne workshop
Footprint, weight and installed power	Set out in your quote for the width and table you choose

Before and after

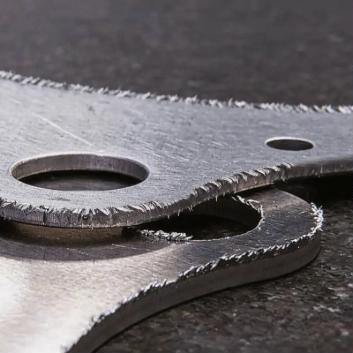

Before

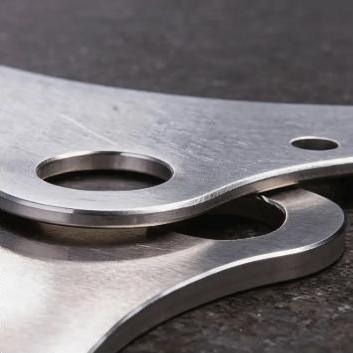

After

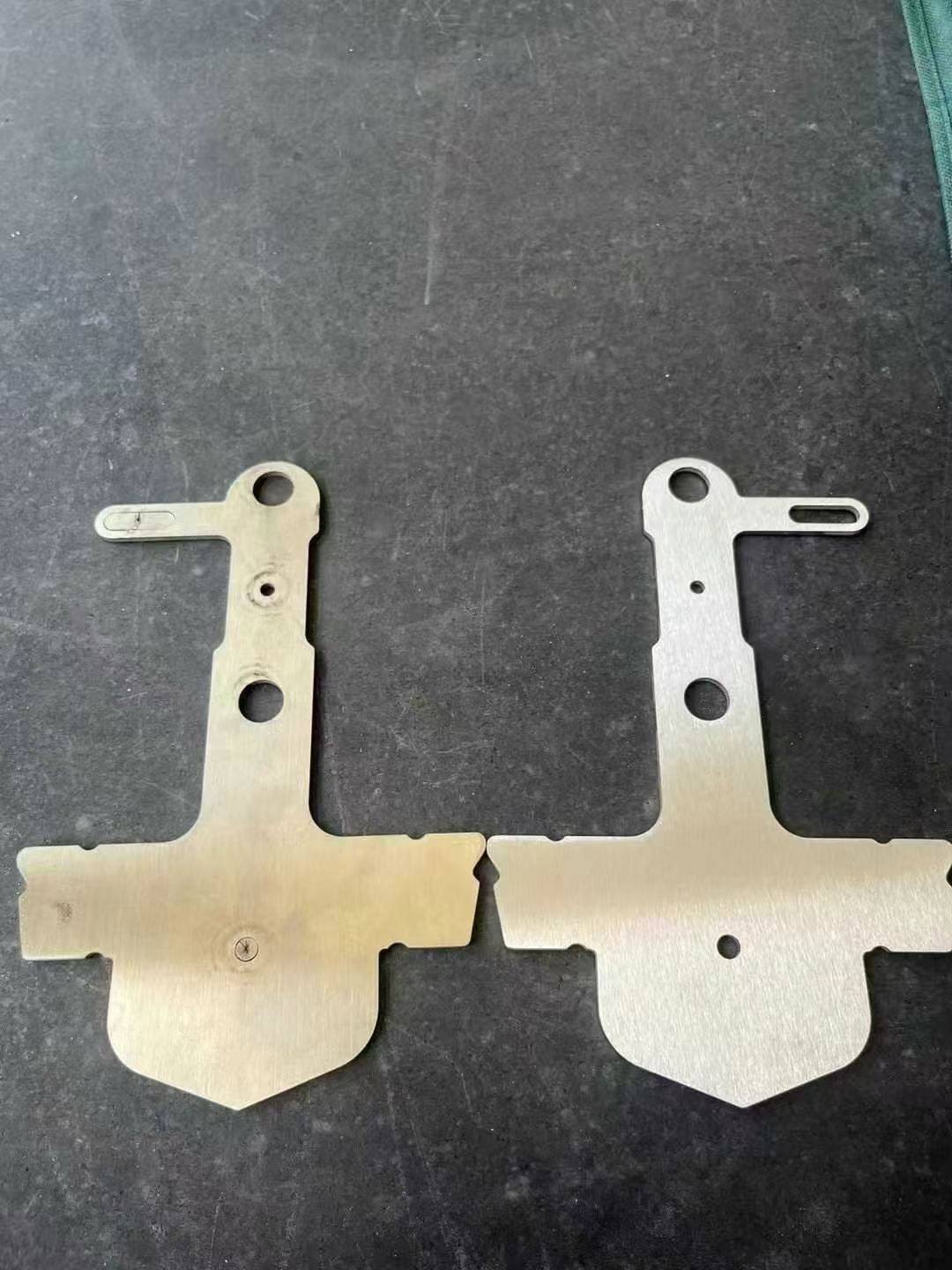

Laser-cut bracket before and after edge rounding.

Where it fits

Parts going to powder coating, wet paint or galvanising
Stainless fabrication for food, medical and architectural work
Electrical enclosures and cabinets
Any part a person picks up with bare hands

Questions we get asked

What edge radius will I get?

It depends on the material, the brush, the feed speed and whether you run one brush unit or two. If your drawing or coating specification calls for a set radius, tell us the number and we will prove it on your parts before you order.

Does it round the edges of holes and internal cut-outs?

Yes. The brushes rotate and travel across the part, so they reach internal contours as well as the outside profile.

Will it mark the surface?

The brushes do contact the face of the part. On coated or painted work this does not matter. For a visible stainless finish, look at the complete finishing machines, which end with a brushing roller.
