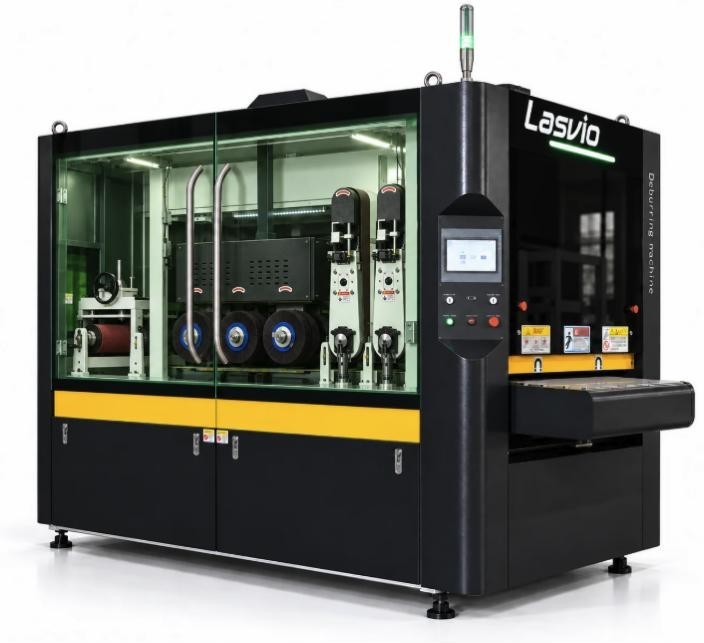

Deburring machines / BRP, BBRP, BRBP
Deburring
and Surface Finishing Machines
Some parts are seen. Stainless panels, kitchen equipment, lift interiors and architectural work need a clean edge and a uniform brushed face, and getting that by hand takes your best people the longest. Lasvio BRP, BBRP and BRBP machines deburr, round the edges and lay down a straight-line brushed finish in one through-feed pass.
What inconsistent finishing costs you

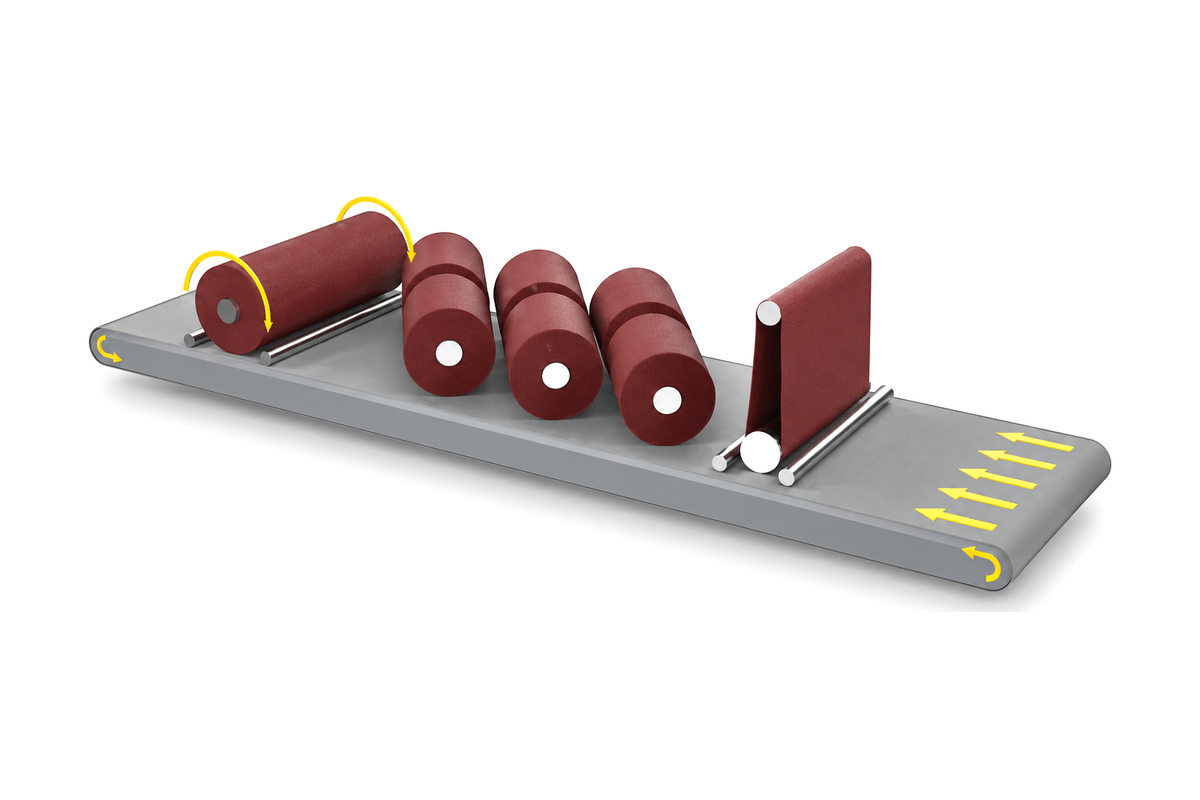

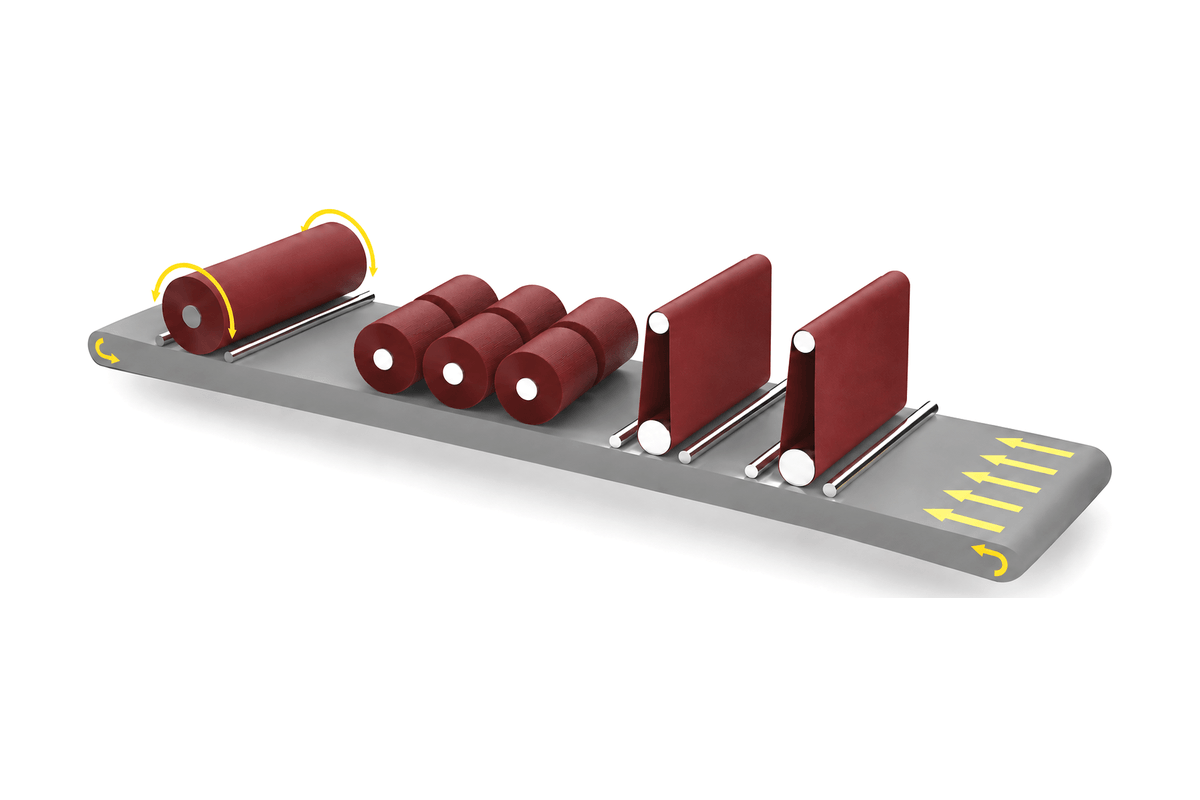

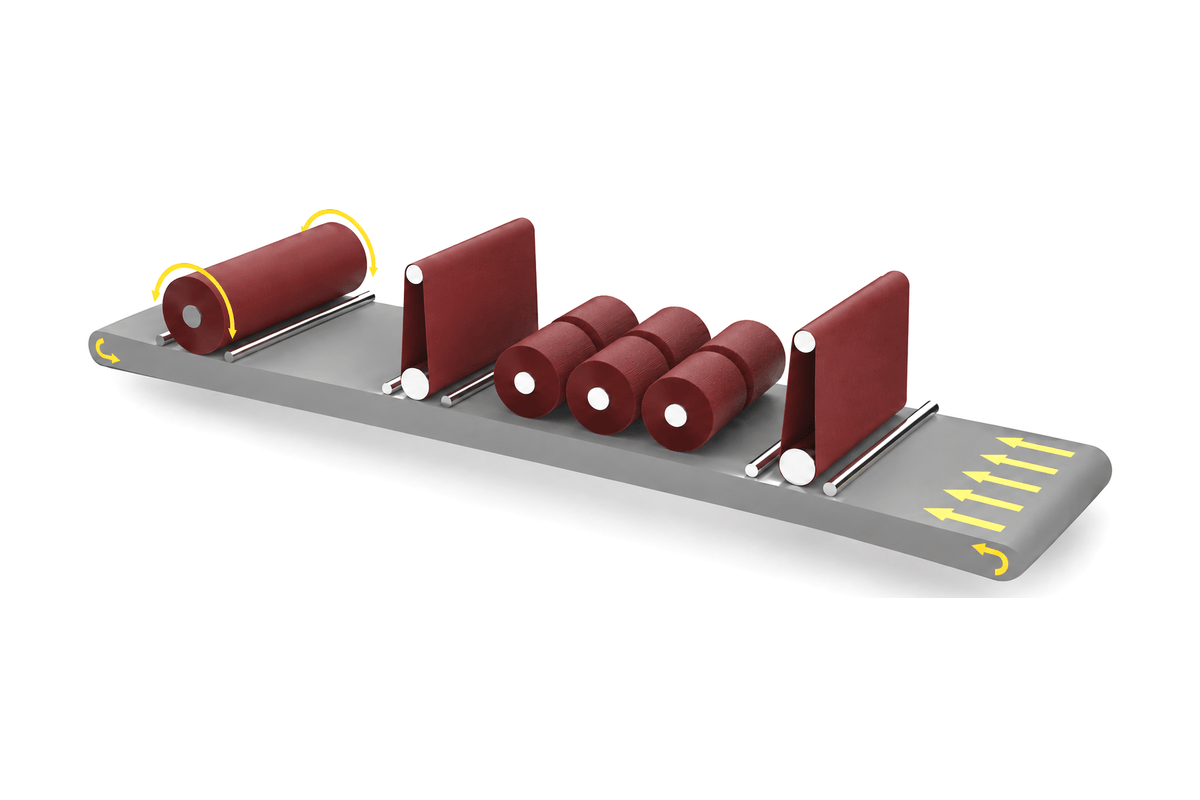

BRP, BBRP or BRBP: which one
Every configuration ends with a finishing roller (the P station) that applies the straight-line brushed finish. The belts and brush ahead of it do the deburring and edge rounding.
A fourth station only earns its cost if it does useful work on your parts. We will tell you if a BRP does the job.
Specifications
| Specification | Detail |
|---|---|
| Working widths | 800, 1000, 1300 and 1600 mm |
| Part thickness | 0.5 to 80 mm |
| Minimum part size | 15 x 15 mm on the magnetic table; 50 x 50 mm on the vacuum table (solid sheet) |
| Feed speed | 1 to 5 m/min, adjustable |
| Abrasive belt speed | 5 to 13 m/s |
| Compressed air | 0.5 to 0.8 MPa |
| Power supply | 415 V, 3-phase, 50 Hz |
| Control | Siemens PLC and touch screen, closed-loop servo drive |
| Part holding | Magnetic table for carbon steel; vacuum table for stainless, aluminium, copper and other non-magnetic parts |
| Safety | Interlocked doors, emergency stops, air pressure and over-thickness alarms |
| Materials | Carbon steel, stainless steel, galvanised steel, copper, aluminium (with wet dust collection) |
| Warranty | Two years, with installation, training and service from our Melbourne workshop |
Before and after

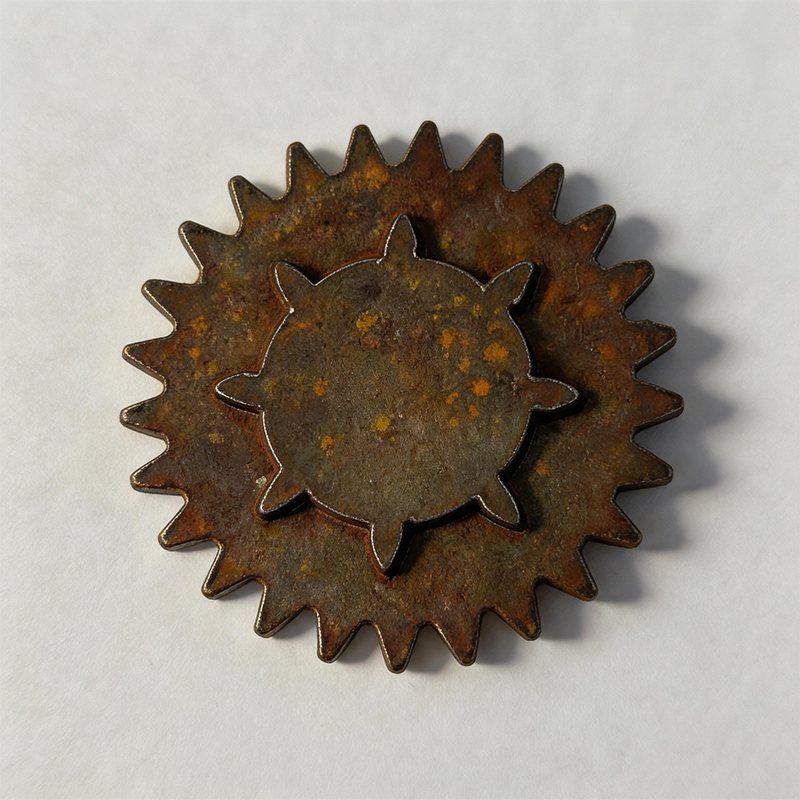

Before

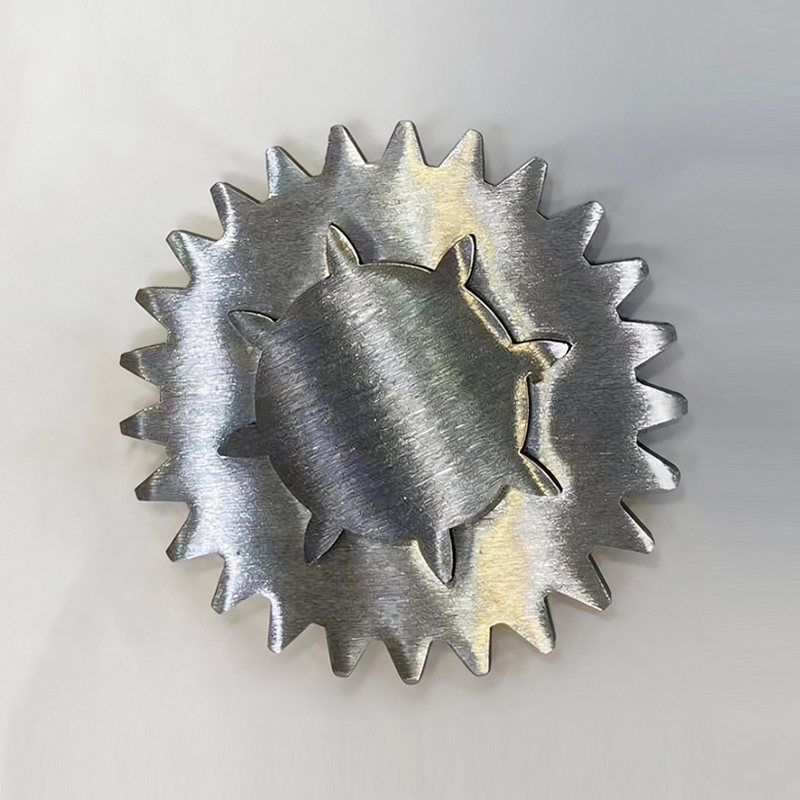

After
Where it fits
- Decorative stainless steel panels
- Lift panels
- Commercial kitchen and food equipment
- Electrical enclosures
- Architectural metalwork
Standard models
| Model | Stations | Size L x W x H (mm) | Weight (kg) | Installed power (kW) |
|---|---|---|---|---|
| 800BRP | Belt, brush, finishing roller | 3,550 x 1,500 x 2,200 | 2,900 | 26 / 41 |
| 1000BRP | Belt, brush, finishing roller | 3,860 x 1,830 x 2,250 | 3,800 | 28 / 43 |
| 800BRBP | Belt, brush, belt, finishing roller | 4,000 x 1,500 x 2,200 | 3,500 | 38.5 / 53.5 |
Questions we get asked
What is the difference between deburring and surface finishing?
Deburring removes the burr and the sharp edge. Surface finishing changes how the face of the part looks: its grain, texture and consistency. These machines do both in one pass.
What finish does the roller produce?
A straight-line brushed grain along the feed direction, approximately a No. 4 finish. The exact result depends on the roller and abrasive selected.
Can it match an existing brushed finish?
Send us a sample of the finish you need to match along with your parts, and we will show you how close the machine gets.
Will it remove handling scratches?
Light scratches, yes, because the whole face is re-grained.
A finish your customer sees, every part the same.
Send us your parts and a sample of the finish you want. We will run them and send them back.
Call 03 9796 3055 or email sales@industriallaser.com.au
